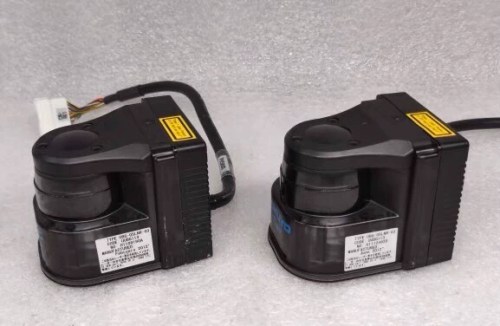

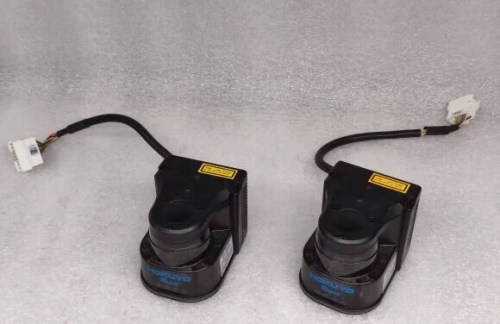

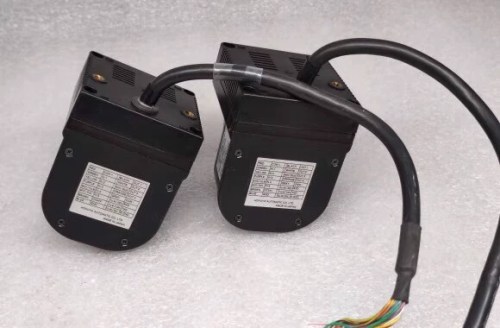

🔍 Hover to zoomReliable 2D LiDAR scanner for precise obstacle detection and navigation in industrial automation environments
| Brand | HOKUYO |
| Model | UBG-05LNR-03 |
| Voltage | 24V DC |
| Country of Origin | Japan |
| Weight | 0.2 kg |
| Dimensions | 60 x 60 x 80 mm |
| Warranty | 6 months (used item) |
| Certifications | CE, RoHS |
| SKU / MPN | UBG-05LNR-03 |
| What’s in the box | HOKUYO UBG-05LNR-03 Laser Radar Scanner, connection cable, mounting bracket, user manual |
| Detection Range | 0.1 to 5 m |
| Scan Angle | 270° |
| Output Type | NPN (Switching output) |
| Interface | USB / RS-232C |
| Light Source | Laser diode 905 nm (Class 1) |
| Power Consumption | Less than 3 W |
Key benefits: Wide 270° scan angle, compact lightweight design, low power consumption, fast response time, easy integration with AGV and robotic systems
Typical applications: AGV navigation, obstacle detection, robotic mapping, warehouse automation, material handling systems, security perimeter scanning
Lifecycle: Mature product, limited new stock available from industrial surplus channels
