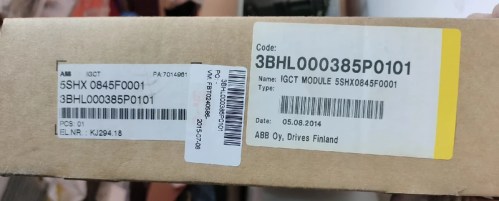

3BHL000385P0101 IGCT by ABB - Efficient Power Conversion

3BHL000385P0101 5SHX0845F0001
โ˜…โ˜…โ˜…โ˜…โ˜†4.0 (1 review)
Price on Request
๐Ÿ’ณ Buy Now
  • โœ“ Product sourcing and condition details are provided based on the available supplier information for each item
  • โœ“ Inspection and documentation details vary by product and can be shared when available
  • โœ“ Warranty, return and replacement terms are confirmed in the quotation or order details
  • โœ“ Shipping options, carriers and delivery estimates depend on the destination and order requirements
  • โœ“ Cross-reference and alternate-part requests can be reviewed based on available technical information

ABB IGCT 3BHL000385P0101 โ€“ High-Power Semiconductor Device

Manufacturer ABB
Part Number 3BHL000385P0101
Power Supply 2800V DC
Made in Switzerland
Mass 2.5 kg
Size 120mm x 90mm x 40mm
$1 6 months
Approvals IEC 60747, UL 1557, RoHS
Catalog Number 3BHL000385P0101
Package Contents 1x ABB IGCT module, 1x mounting kit, 1x datasheet
Maximum Turn-Off Current 4000 A
Repetitive Peak Off-State Voltage 4500 V
On-State Voltage Drop 2.2 V
Gate Trigger Current 500 mA
Operating Temperature Range -40ยฐC to +125ยฐC
Switching Frequency Up to 1 kHz
High-reliability IGCT for demanding industrial power conversion, ensuring minimal losses and robust performance in medium-voltage drives and grid-tied inverters.
Key benefits: Low on-state losses, high surge capability, integrated gate unit for easy drive, proven ABB quality for long service life.
Typical applications: Medium-voltage drives, wind power converters, traction systems, industrial power supplies.
Lifecycle: Active
