Description

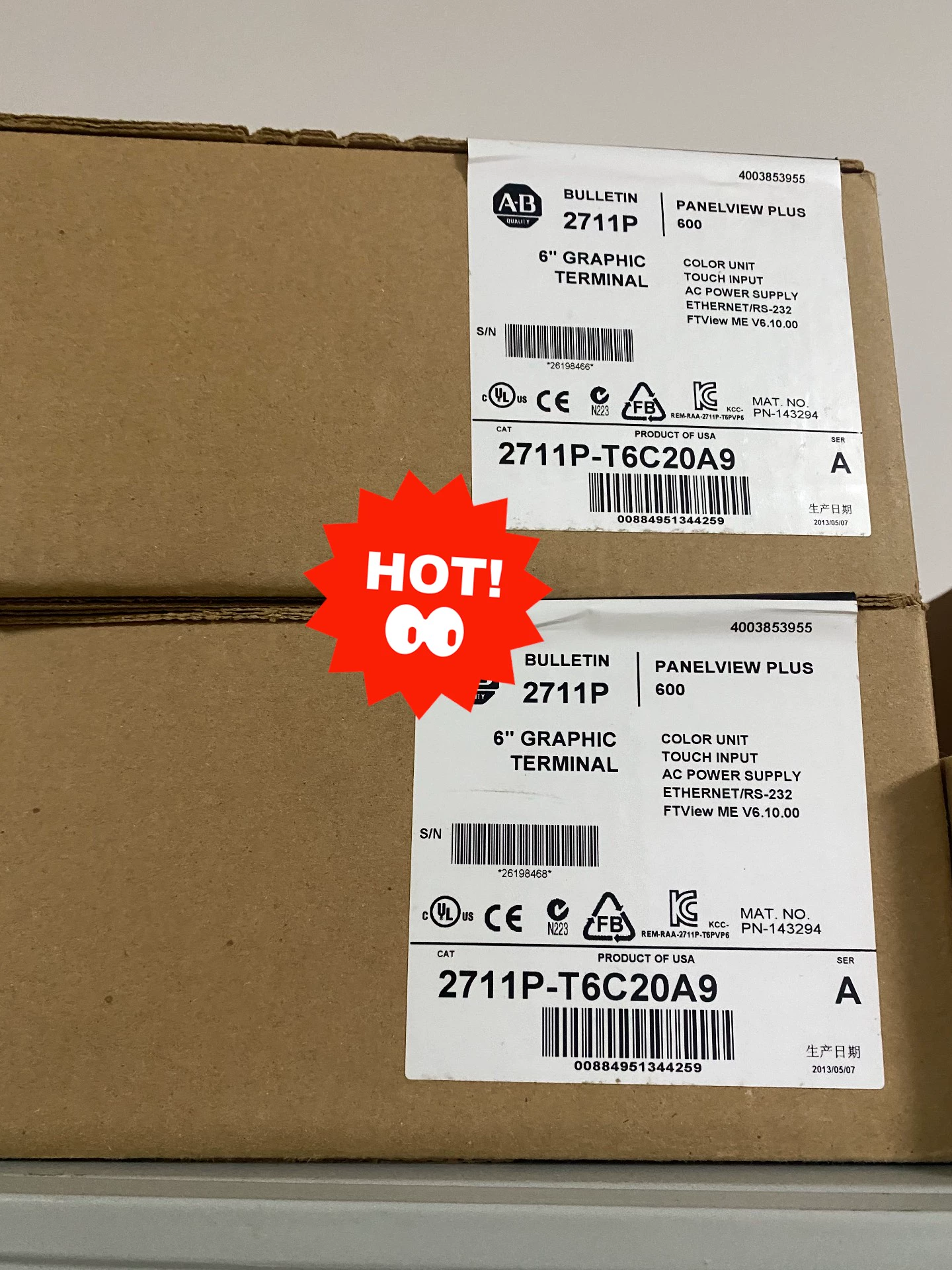

2711P-T6C20A9 PanelView Plus 6 Graphic Terminal
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 2 |
| Number of password levels | 2 |
| Number of grey-scales/blue-scales of display | 0 |
| Number of system buttons | 0 |
| Voltage type of supply voltage | AC |
| Number of function buttons, programmable | 0 |
| Number of online languages | 20 |
| Suitable for safety functions | FALSE |
| Supporting protocol for TCP/IP | TRUE |
| Supporting protocol for Modbus | FALSE |
| Supporting protocol for Data-Highway | FALSE |
| With colour display | TRUE |
| Number of pixels, vertical | 240 |
| With numeric keyboard | FALSE |
| With alpha numeric keyboard | FALSE |
| With message indication | TRUE |
| With message system (incl. buffer and confirmation) | TRUE |
| Process value representation (output) possible | TRUE |
| Process default value (input) possible | TRUE |
| With recipes | TRUE |
| With printer output | TRUE |
| Additional software components, loadable | FALSE |
| Supporting protocol for EtherNet/IP | TRUE |
| Screen diagonal | 5.7 in |
| Number of pixels, horizontal | 320 |
| Useful project memory/user memory | 73000 mb |
| Touch technology | Resistive touch |
| Power input | AC |
| Brightness | 440 cdb/m² |
| Display size | 5.7 in |
| Resolution | 320 x 240, 18-bit color graphics |
| Keypad function keys | 10 function keys (F1…F10) |
| Operator input | Touch |
| Power consumption | 35VA maximum, 20VA typical |
| Display type | Color active matrix, thin-film transistor (TFT) |
| Touch screen | Analog resistive, 4-wire, Actuation: 1 mon presses, Operating force: 10…110 g |
| Operating system | Windows CE 6.0 operating system with extended features/file viewers |
| Backlight | White LED, Not replaceable, 25,000 hr minimum at 25 °C (77 °F) |
| Keypad description | Stainless-steel membrane, Numeric, navigation and function keys, Actuation: 1 mon presses, Operating force: 340 g |
| Software | FactoryTalk view machine edition software, version 6.10 or later, FactoryTalk viewpoint software is not supported on the 400 and 600 terminals |
| Input voltage | 100…240V AC @ 50…60Hz |
| Secure Digital (SD) card slot | Hot-swappable card slot supports 1784-SDx and 1784-SDHCx SD cards for transferring files, upgrading firmware, or logging data |
| Battery (real-time clock) | Battery-backed clock timestA critical data, accuracy is ±2 min per month, Battery life: 4 yr min at 25 °C (77 °F), Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| USB ports | One USB host ports for connecting a USB mouse, keyboard, printer, and USB flash drives that are hot swappable, One USB device port for connecting a host personal computer |
| Communication ports | RS-232, 1 USB host, 1 USB device port (catalog numbers with the number 5, for exAle, 2711P-B4C5D8), Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, 1 USB host, 1 USB device port (catalog numbers with the number 20, for exAle, 2711P-B4C20D8) |
