SITRANS LU240 probe, ultrasound amm. preobr. level: continuous
action, contactless., measurement range of 12 m (40 ‘), control of the level
of filling, volume and volumetric flow rate of liquids, sludge and bulk
materials; With convenient assets of the start -up and integrated data
registrar. Data exchange: HART (4 … 20 mA) level, volume degree of
protection: IP68, Type6 Dimension/Part range contacting with the environment:
200. .. 6000 mm, etFe connection to the process: g 2 ”[(bspp), en ISO 228-1].
Parts do not contact with the medium: plastic (PBT/ PC material) Corps Type
of Protection: not ech, CCSAUS, CE, RCM Electric connection/ cable input (one
plastic cable input and one plug) Local HMI: C: C display (transparent lid
from RS material) 7ML5110-1EF07-4AF3

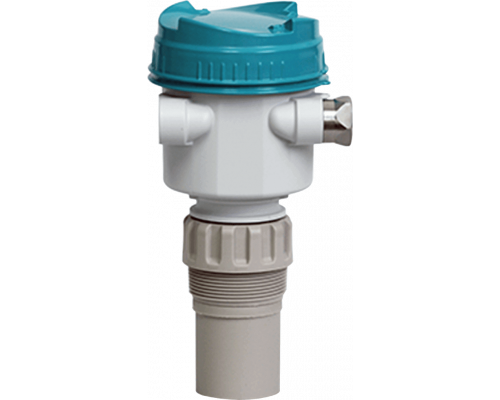

SITRANS LU240 probe, ultrasound amm. preobr. level: continuous
action, contactless., measurement range of 12 m (40 ‘), control of the level
of filling, volume and volumetric flow rate of liquids, sludge and bulk
materials; With convenient assets of the start -up and integrated data
registrar. Data exchange: Hart (4 … 20 mA) The volume of the protection:
IP68, Type6 measurement/part range contacts with the environment: 200 …
12000 mm, PVDF Connection to the process: G 2 ”[(BSPP), EN ISO 228-1]. Parts
not in contact with the environment: plastic (pbt/pc) body type Type: not e,
not e, not e CCSAUS, CE, RCM Electric connection/ cable inputs (one plastic
cable input of general purpose and one plug) Local HMI: with a display (a
dull cover of PBT/ PC material) 7ML5110-1GF07-4AF1

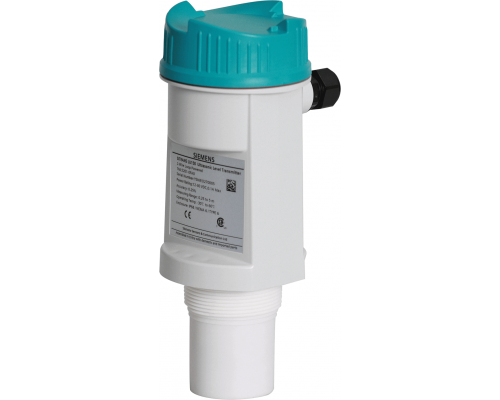

Sitrans LU150-an ultrasonic built-in sensor of near-action, wide
application, 2-wire, with a current loop from 4 to 20 mA. Ideal for liquids,
pulp and bulk materials in open or closed tanks up to 5 meters high (16.4
feet). . Sensor/ Connection to the process: PVDF, 2 “NPT ((Taper), ANSI/
ASME B1.20.1) M20 x 1.5 (general-industrial execution of cable input included
(-20 To +60 C). 7ML5201-0EB0

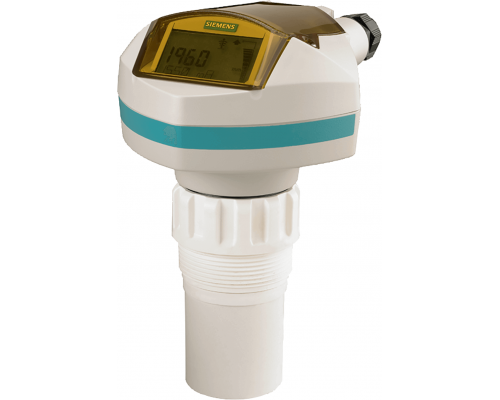

Sitrans Probe LU with a two -wire ultrasonic measuring transducer with
power supply from the contour for control of the level, volume and
consumption of liquids in open channels, storage tanks and simple
technological reservoirs. Building / cable input: plastic (PBT) 2 x M20
Reminent / Sensor Material: 6 meters (20 feet), ETFE connection to the
process: 2 NPT ((conical), ANSI / asme B1.20.1) Supervision: Profibus PA
admission: General purpose, FM, CSA, CE, C-TIKK, KCCC, KCC 7ML5221-1AA21
