7MF1567 – measuring pressure converter Sitrans P220 for excess
pressure, error 0.25%, measuring membrane material: stainless steel. Steel,
material of the converter case and measuring cell: stainless steel. Steel,
measurement range for excess pressure: from 0 to 10 bar, overload pressure 25
BAR Output: 4-20 m Two-wire connection, DC power from 7 to 33 V without
explosion protection Electric connection: STETER on DIN EN 175301-803-A,
thread for the stuffing oil sewn M16 (corner) connection to the process: G1/2
2/2 2/2 External in EN 837-1 (1/2 BSP external) (standard for metric pressure
ranges in MBAR, bar)-standard execution certificate of quality check (factory
calibration) in accordance with IEC 60770-2 (included) 7MF1567-3CA00-1AA1-Z
C11

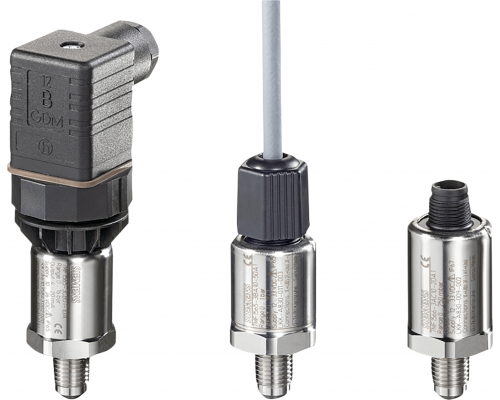

7MF1567 – measuring pressure converter Sitrans P220 for excess
pressure, error 0.25%, measuring membrane material: stainless steel. Steel,
material of the converter case and measuring cell: stainless steel. Steel,
measurement range for excess pressure: from 0 to 100 bar, overload pressure
250 BAR Output: 4–20 m two-wire connection, DC power from 7 to 33 V without
explosion protection Electric connection: STETER on DIN EN 175301-803-A,
thread for the stuffing oil sewn M16 (with a connector) connection to the
process: G1/2/2 External in EN 837-1 (1/2 BSP external) (standard for metric
pressure ranges in MBAR, bar) – standard performance 7MF1567-3DA00-1AA1

7MF1567 – measuring pressure converter Sitrans P220 for excess
pressure, error 0.25%, measuring membrane material: stainless steel. Steel,
material of the converter case and measuring cell: stainless steel. Steel,
measurement range for excess pressure: from 0 to 250 bar, translucent
pressure 625 BAR Output: 4-20 m Two wire connection, DC power from 7 to 33 V
without explosion protection Electric connection: STETER on DIN EN
175301-803-A, thread for the stuffing oil sewn M16 (with the connector)
technology. SOD.: G1/4 “, external. According to DIN3852, form E –
standard execution 7MF1567-3DD00-1QA1

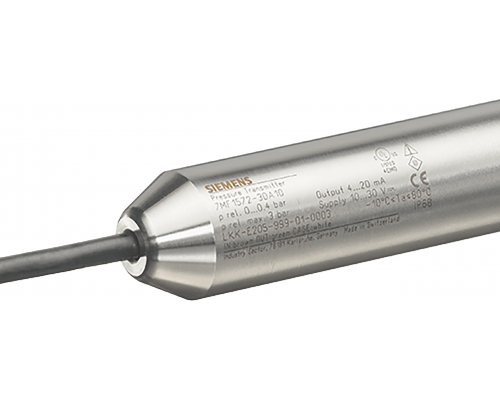

7MF1570- hydrostatic pressure converter (level) measuring
Sitrans P MPS, error 0.3%, 2-wire structure, measurement range: 0-4 m WC,
cable length: 10 m, PE Cable (description is absent) (description is absent)
1- without explosion protection, 7MF1570 of hydrostatic pressure (level)
Measuring Sitrans P MPS, error 0.3%, 2-wire circuit, output 4-20 mA, membrane
material and converter housing: stainless steel. Steel 316 Ti, connecting box
and cable clamp are included in the supply volume1 – cable material: RE, DA0
measurement range 0 … 4 m of water. Art., cable length 10 m, 1 – without
explosion protection, 7MF1570-1DA01
