Description

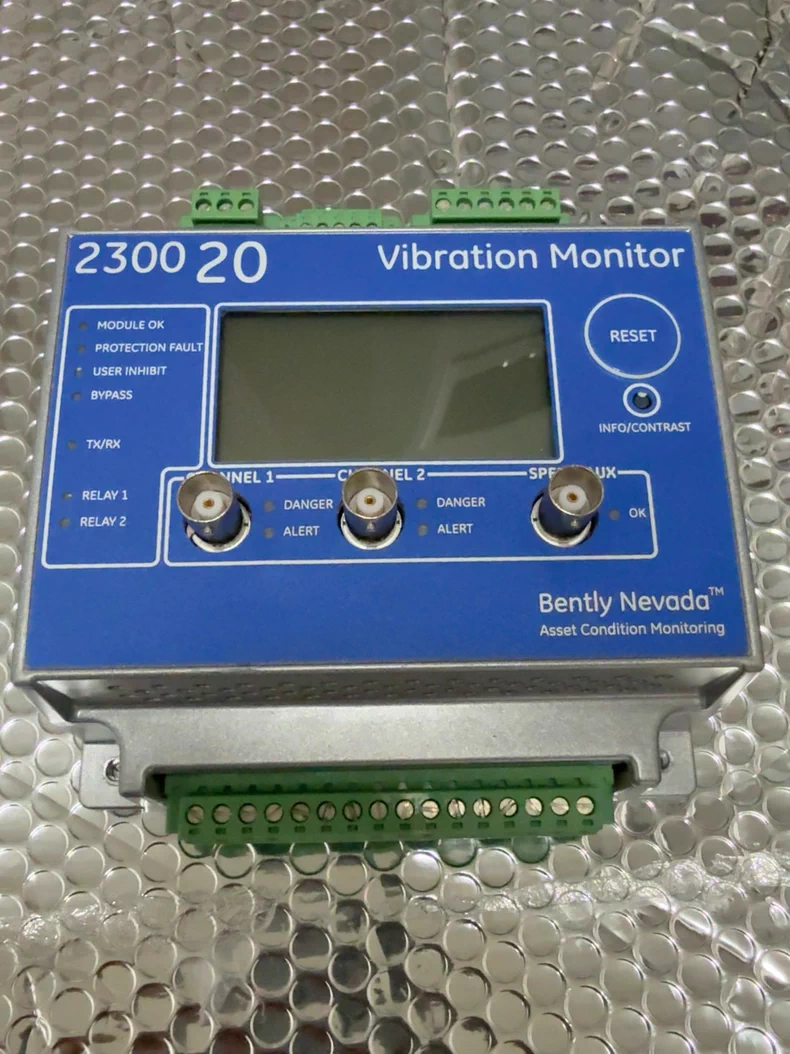

The Bently Nevada 2300/20-KIT-002-00-00 is a 2300 Series Vibration Monitor Kit designed for comprehensive machinery condition monitoring. Here are its key specifications and features:
Technical Specifications:
Model Number: 2300/20-KIT-002-00-00
Product Type: Vibration Monitor Kit
Components:
1 x 2300/20 Monitor
1 x 6 ft. (1.8 m) shielded Ethernet cable
1 x Housing Kit: 105M6193-01 (fiberglass housing for nonhazardous area) or 105M6193-03 (stainless steel housing for hazardous area)
1 x Accelerometer sensor (AM3100T2-Z2)
1 x 17 ft. (5.2 m) cable (9571)
Excludes: Keyphasor sensor and 24 Vdc power supply
Power Input: DC Input: 18~36 Vdc, max 7.5 W
Channel Types: ICP Accelerometers
Bandpass Filter Configurable: 0.2 Hz to 20 kHz
Scale Factor Range: Accelerometer: 5 to 1000 mV/g, Velocity: 5 to 1000 mV/in/s, Radial Vibration: 5 to 1000 mV/mil, Thrust Channel: 5 to 1000 mV/mil
Full Scale Range: Acceleration: 2 to 80 g peak, Velocity: 0 to 50 in/s peak, Radial Vibration: 0 to 160 mil peak-peak
Current Sink Source: 3.3 mA ± 5%
Open Circuit Voltage: Voltage: -21 to -24 Vdc
Dimensions: 127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.)
Weight: 1.03 kg (2.26 lbs)
Operating Temperature Range: -30°C to +65°C (-22°F to +149°F)
Protection Rating: IP20
Certifications: CE, UL/CSA
Shipping Weight: 1.03 kg (2.26 lbs)
Made in: U.S.A
Features:
Mechanical Vibration Monitoring: Continuously monitors vibrations for machinery health.
Alarm and Machinery Status Information: Provides real-time alerts and status updates.
Vibration Analysis Support: Facilitates detailed analysis of vibration data for predictive maintenance.
High Accuracy: Ensures precise measurement results.
Ease of Integration: Seamlessly integrates with existing systems for comprehensive monitoring and control.
LCD Display: Shows measurement values and status information.
LED Indicators: Provides visual status updates.
DIN Rail Mounting: Allows for easy installation in industrial environments.
