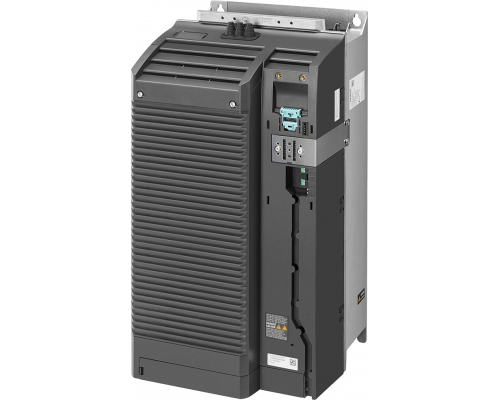

6AG1210-1PE26-2UL0

Siplus PM240-2, operating temperature -20 … +50 ° C (HO) -20
… +40 ° C (LO) with a persistent coating based on 6SL3210-1PE26-0UL0.
Without a built-in filter, with a built-in brake resistor, 3x-facials. ~
380-480 V+10/-20% 47-63 Hz, power at a constant load moment (HO): 22 kW with
a surgency of 200% 3 C, 150% 57 C, 100% 240 C; Power at a variable load
moment (LO): 30 kW with a survival of 200% 3 C, 150% 57 C, 100% 240 C; 472 x
200 x 237 (inxshx), FSD size, IP20 protection, without CU and panel, for CU
with version FWV4.7 HF8 6AG1210-1PE26-2UL0
