1PH8224-1DF03-0DA1

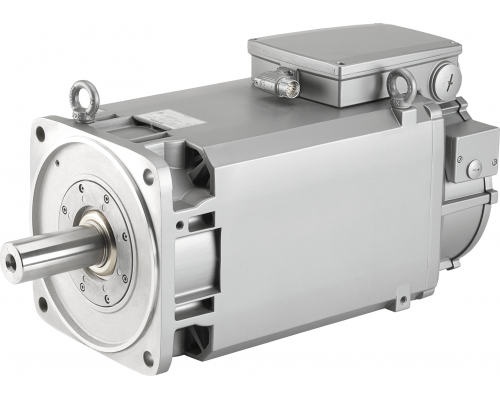

Compact asynchronous engine 1500 rpm, 95 kW, 605 HM, 200A, 340
in 1750 rpm, 110 kW, 600 HM, 198A, 395V 2000 rpm, 124 kW, 592 HM, 196A, 460V
Ventilation from the external source, direction of air flow de -> nde,
IP55555555555555 22-bit incremental sensor with a switching position (IC22DQ
code) with the Drive-Cliq interface IM B35 with A450 (IM V35) Smooth shaft
bearing: Vibration degree standard SR / A; Shaft A.Flange accuracy GR.r
terminal box (on top), cable input on the right, connecting a signal cable de
de 1PH8224-1DF03-0DA1
