1PH8165-1DD03-1LA1

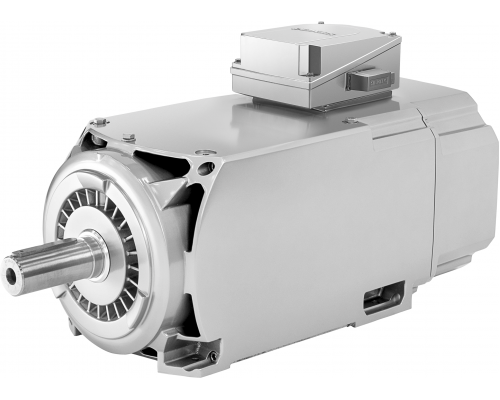

Compact asynchronous engine 1000 rpm, 28 kW, 267 HM, 71A, 292V
1150 rpm, 31 kW, 257 HM, 69A, 333V 1350 rpm, 34 kW, 241 HM, 66A, 387v forced
ventilation, direction of air flow de -> nde, IP555555555555 22-bit
incremental sensor with a switching position (IC22DQ code) with the
Drive-Cliq interface IM B35 (IM V15, IM V35) shaft with a veneer, balancing
with a full bearing: execution, vibration of the severity of special / V;
Shaft A. Flane accuracy gr. Special terminal box (from above), cable input on
the right, connecting the signal cable de de 1PH8165-1DD03-1LA1
