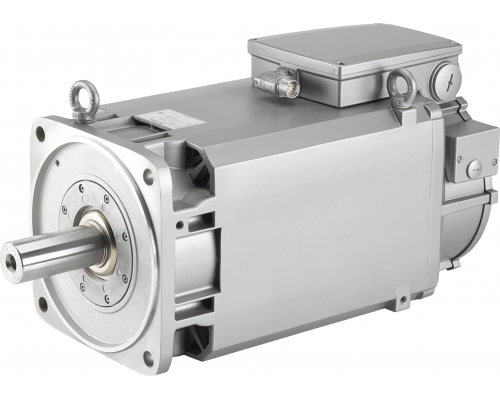

1PH8137-1DG10-2BA1

Compact asynchronous engine 2000 rpm, 28 kW, 134 HM, 60A, 350V
2300 rpm, 29 kW, 120 HM, 56A, 400 in 2650 rpm, 30 kW, 108 HM, 52A, 460V,
forced ventilation, direction of air flow NDE -> DE, IP55 protection
class, IP55 protection class. 22-bit incremental sensor with a launch of
switching (IC22DQ code) with the Drive-Cliq interface IM B3 (IM V5, IM V6)
shaft with a prismatic veneer, half-blade balancing bearing: standard with a
motionless support, vibration of severity: r / a, flange accuracy: r terminal
box (From above), cable input on the right, connecting the signal cable de
1PH8137-1DG10-2BA1
