1PH8131-1HF12-2GA2

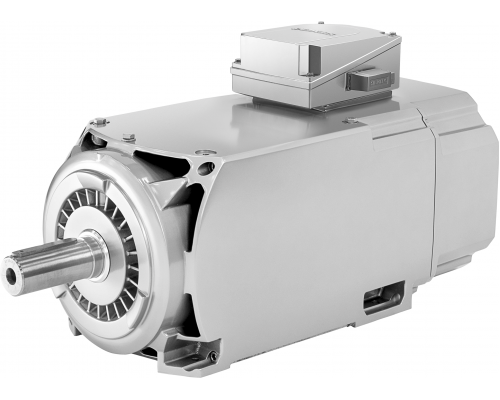

Compact asynchronous engine SIMOTICS M 1500RPM, 11KW, 70NM,
24A, 360V 1750RPM, 13KW, 71NM, 24A, 416V 2000RPM, 15KW, 72NM, 24A, 460V
Forced Ventilation; Direction of Air Flow Nde -> de; Degree of Protection
IP55 an HTL-1024 S / R Increte sensor (HTL1024S / R encoder), with a
temperature sensor PT1000 IM B5 (IMV 1, IM V3) shaft with a prismatic veneer,
half-vibral balancing bearing: standard, vibration degree Walls and flanges
accuracy: R terminal box (on top), cable input on the right, connection of the
signal cable de de 1PH8131-1HF12-2GA2
