-20%
7MF4433-1DA02-2AB1
Original price was: $739.28.$591.42Current price is: $591.42.(0 reviews)7MF4433 – measuring pressure converter Sitrans p ds III for
differential pressure and consumption, output signal 4 … 20 mA, HART
protocol, static pressure PN32/160, 1 – filling the measuring cell: silicone
oil, conventional cleaning; D is the nominal measurement range 250 MBAR,
static pressure 160 bar; A – stainless steel membrane material. Steel, the
material of the hull of the sensor stainless steel. Steel, 0 – connection to
the process: oval flange: stainless steel material. Steel, PN 160, mounting
thread: M10, 2-aluminum, painted, 2-international execution, inscription in
English, documentation on the CD-disk, a-without explosion protection,
b-cable input with M20 x 1.5 thread, 1-LCD, cover without an observation
window, cover, cover 7MF4433-1DA02-2AB1 -
-20%
7MF4434-1CA02-1AB1
Original price was: $3,055.68.$2,444.54Current price is: $2,444.54.(0 reviews)7MF4434 – Pressure Pressure Sitrans P DS III for differential
pressure and consumption, with the Profibus PA interface, static pressure
PN32/160, filling the measuring cell: silicone oil, normal cleaning of the
range 1 to 60 MBAR PN 160, stainless steel material. Stainless steel chambers
Connection to the process: 1/4-18 NPT Fixation threads: M10 Coveline case
with a coating, stainless steel fasteners. Standard execution without
explosion protection, electric connection and cable input: internal thread M20
x 1.5 lid without a window (digital indicator closed) 7MF4434-1CA02-1AB1 -
7MF4435-1FB02-1AC6
$99,999.00(0 reviews)7MF4435 – Pressure Pressure Sitrans p DS III for differential
pressure and consumption, with the Foundation Fieldbus interface, static
pressure PN32/160, filling the measuring cell: silicone oil, regular cleaning
of the range 16 to 1 600 MBAR PN 160, HASTELLOY diaphragm diaphragm The
measuring cell stainless steel.Stal connection to the process: 1/4-18 NPT
Fixing threads: m10 aluminum housing with coating, stainless steel fasteners.
Standard execution. Without explosion protection, electrical connection and
cable input: internal thread 1/2-14 NPT case with a window 7MF4435-1FB02-1AC6 -
-20%
7MF4534-1HA53-1AF6
Original price was: $2,209.84.$1,767.87Current price is: $1,767.87.(0 reviews)7MF4534 – Pressure of the measuring Sitrans p ds III for
differential pressure and consumption, with the Profibus PA interface, static
pressure PN420, filling the measuring cell: silicone oil, normal cleaning of
the range 300 to 30,000 mbar max. Static pressure 160 stainless steel
diaphragm. Steel, the measuring cell – stainless steel. STAL Connection to
the process: 1/4-18 NPT installation thread: M12 and lateral discharge of the
case of stainless steel, stainless steel fixing bolts (max. PN 315) Standard
performance. Without explosion protection with a PROFIBUS m12 PROCHEL CLEASH
with a window (digital indicator is visible) 7MF4534-1HA53-1AF6 -
7MF4913-…..-..
$99,999.00(0 reviews)7MF4913 – a membrane separator of the flange type pressure consisting of
a rigidly mounted separator to the “plus” side of the differential pressure
converter and the separator mounted through the “minus” side, the connection
to the process according to the EN1092-1/ asme B16.5, the Directive for
pressure F GAS 1/ Liquids 1 art. 3.3 SEP 7MF4913-…..-.. -

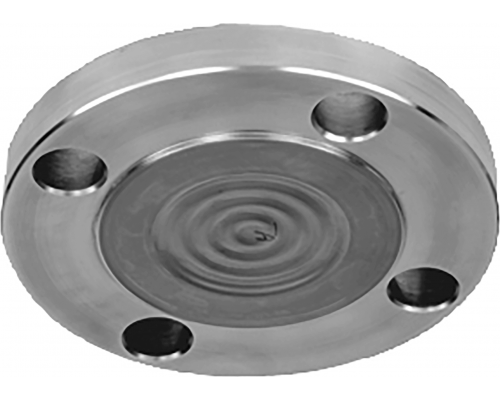

7MF4920-1LJ01-9B-Z C11+C12+N1E
$99,999.00(0 reviews)7MF4920 – a membrane separator of the pressure of the flange
structure for the transducer of excess or absolute pressure (the supply
period of the separator and the converter is summarized), the flange type
with a tube and capillary, is attached to the sensor of the relative pressure
of the flange according to the DIN 2501 Resp. ANSI B 16.5 diameter; Pressure:
2 inches; Class 150 Material of the components in contact with the Izm.
Wednesday: Hasteellloy C276 alloy, mat. No. 2.4819 The length of the tube:
no. Liquid: silicone oil M5 length of the capillary tube: 3.0 m (description
is absent) Certificate of the manufacturer according to DIN 55350 PART 18 +
ISO 8402 manufacturer test. DIN 50049 ECTION 3.1+EN 10204 7MF4920-1LJ01-9B-Z
C11+C12+N1E -
-20%
7MF4994-1DA02-1DC0
Original price was: $2,411.32.$1,929.06Current price is: $1,929.06.(0 reviews)7MF4994 – measuring cell for the differential pressure
converter Sitrans P DS III, PN 32/160, 1 – filling the measuring cell:
silicone oil, conventional cleaning; D is the nominal measurement range 250
MBAR, static pressure 160 bar; A – stainless steel membrane material. Steel,
the material of the hull of the sensor stainless steel. Steel, 0 – connection
to the process: oval flange: stainless steel material. Steel, PN 160,
mounting thread: M10, 2-aluminum housing, painted, for OEM prophesisers
D-with the measured cell Eex D C-Test with high voltage, for insulation
strength and high static pressure, without electronics 7MF4994-1DA02-1DC0 -
-20%
7MF4995-1DA12-1DC0
Original price was: $2,452.18.$1,961.74Current price is: $1,961.74.(0 reviews)7MF4995 – measuring cell for the differential pressure
converter Sitrans p ds III, PN 420, 1 – filling the measuring cell: silicone
oil, ordinary cleaning; D is the nominal measurement range of 250 MBAR,
static pressure 420 bar; A – stainless steel membrane material. Steel, the
material of the hull of the sensor stainless steel. Steel, 1 – connection to
the process: oval flange: stainless steel material. steel, PN 420, mounting
thread: M12, 2-aluminum, painted body, for OEM prophet D-with the measured cell
EEX D C-Test with high voltage, for insulation strength and high static
pressure, 0-without electronics, 7MF4995-1DA12-1DC0 -
-20%

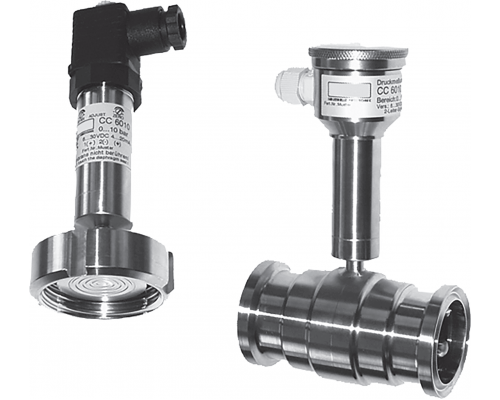

7MF8010-1AD11-1CD1
Original price was: $423.85.$339.08Current price is: $339.08.(0 reviews)7MF8010-1-measuring pressure converter Sitrans p compact for
excess or absolute pressure, 2-wire structure, hygienic execution, output 4
… 20 mA, membrane separator of the front-type pressure, connection to the
process: a) a pressure separator with a high-pipe threaded threaded
connection by DIN 11851 with a slotted fate: DN25 Filling with liquid:
vegetable oil output: 4-20 m case (stainless steel 1.4404)/ Electric
connection: case with an angular plug on DIN 43650, IP 65 The measured range:
0 … 4 Bar overload: 16 Bar without explosive 7MF8010-1AD11-1CD1 -
-20%
7MF8010-1XB31-1CA1
Original price was: $662.39.$529.91Current price is: $529.91.(0 reviews)7MF8010-1-measuring pressure converter Sitrans p compact for
excess or absolute pressure, 2-wire structure, hygienic execution, output 4
… 20 mA, membrane separator of the front-type pressure, connection to the
process: frontal diaphragm external carving ACC. DIN 3852, Form A, G 3/4
Inch, Minimum measurement range 1 bar Filling with liquid: Jews indicated in
the FDA Output signal: 4-20 m case (stainvat. Steel 1.4404)/ Electric
connection: case with an angular plug on DIN 43650, IP 65 The measured range:
0 … 1 BAR BAR BAR BAR Overload: 10 Bar without explosion 7MF8010-1XB31-1CA1 -
-20%
7MF8023-1DA04-1BB6-Z C11
Original price was: $1,181.67.$945.34Current price is: $945.34.(0 reviews)7MF802 – measuring pressure transducer Sitrans P300, for
excess or absolute pressure, 4 … 20 mA / HART Filling a measuring cell:
silicone oil, ordinary max cleaning. Range: 16 Bar G (232 PSI G) Material of
the stainless steel membrane material. Stainfalls Cameras Stal Connection to
the process: Dorn G1/2A by EN 837-1 Material of non-contacting with
ammunition. The component medium: Stainless. Steel, deeply and electric
policies. Standard performance. With ATEX, type of protection “Spirit
safety (EEX IA)”. Threaded input M20X1.5 (metal) with indicator and
keys, glass cover (setting for HART devices: MA, for Profibus devices: units
of pressure) Certificate of manufacturer M to DIN 55 350 Part 18, and to ISO
8402 7MF8023-1DA04-1BB6-Z C11 -
-20%
7MF8023-1FA04-1BB6-Z C11
Original price was: $1,245.54.$996.43Current price is: $996.43.(0 reviews)7MF802 – measuring pressure transducer Sitrans P300, for
excess or absolute pressure, 4 … 20 mA / HART Filling a measuring cell:
silicone oil, ordinary max cleaning. Range: 160 Bar G (2320 PSI G) Material
of the stainless steel membrane material. Stainfalls Cameras Stal Connection
to the process: Dorn G1/2A by EN 837-1 Material of non-contacting with
ammunition. The component medium: Stainless. Steel, deeply and electric
policies. Standard performance. With ATEX, type of protection “Spirit
safety (EEX IA)”. Threaded input M20X1.5 (metal) with indicator and
keys, glass cover (setting for HART devices: MA, for Profibus devices: units
of pressure) Certificate of manufacturer M to DIN 55 350 Part 18, and to ISO
8402 7MF8023-1FA04-1BB6-Z C11
